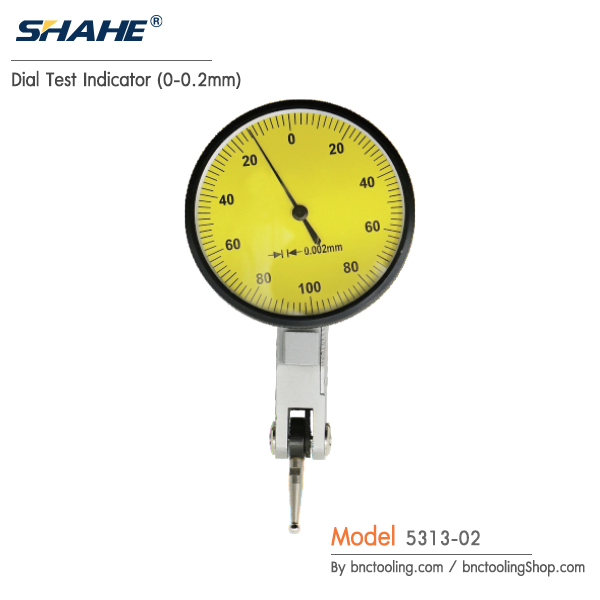

SHAHE,Dial Test Indicator (0-0.2mm),5313-02

• Facilitate accurate measurement of narrow and concave surfaces, and difficult to measure inside and outside diameters.

• Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.

• No-clutch mechanism for automatic reversal of measuring direction.

• Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal.

• High-sensitivity and quick response due to low-friction jewelled bearings.

• Measuring tip has two types: common type and red jewelry type.

Model      Measuring   Resolytion  Accuracy

number   range(mm)      (mm)       (mm)

5313-02       0-0.2             0.002      ±0.004

5313-02A     0-0.2             0.002      ±0.004
