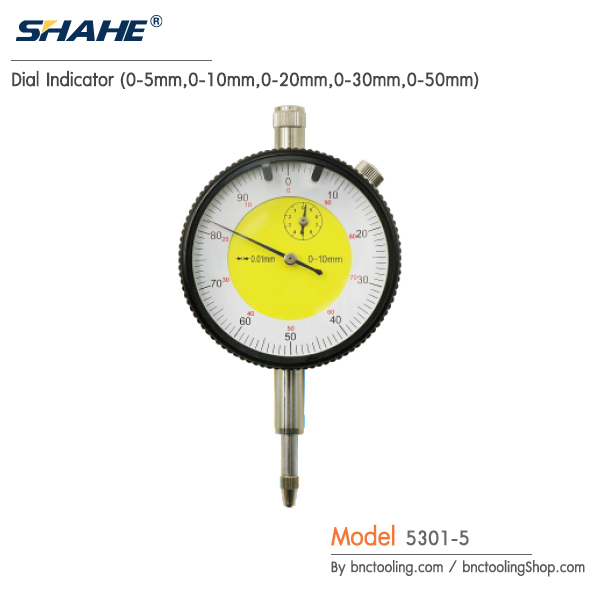

SHAHE,Dial Indicator (0-5mm/0-10mm/0-20mm/0-30mm/0-50mm),5301-5

• Dial gauges with a large diameter dial face to easy reading.

• The moving parts made of special wear mainly stainless steel,

  with good resistance and anti-rust properties

• Smooth-adjusting bezels for easy set up

• Bevel clamp to lock the bezel in place

• Markers can be moved to provide reference points

• Small turn counter inside dial can counts the turms of the needle

• Shockproof structure of tack

• Hard alloy probe

• With or without back lug for option

Model       Measuring        Resolution       Accuracy

number    range(mm)         (mm)              (mm)

5301-5             0-5                 0.01            +- 0.018

5301-10           0-10               0.01             +- 0.02

5301-20           0-20               0.01             +- 0.03

5301-30           0-30               0.01             +- 0.03

5301-50           0-50               0.01             +- 0.04
