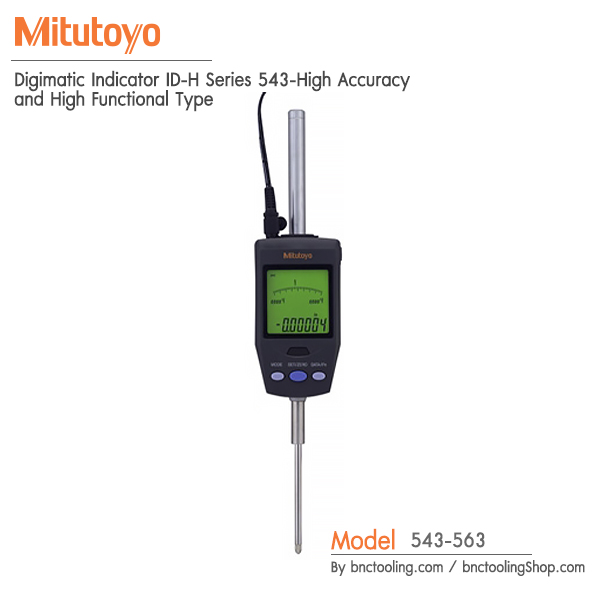

Mitutoyo,Digimatic Indicator ID-H Series 543-High Accuracy and High Functional Type,543-563

• This new-generation digital indicator offers the excellent accuracy and functionality expected from this class of indicator. Take advantage of its high accuracy backed up by 0.5ìm / .00002" resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analog bar display.

• The maximum, minimum, or runout value can be displayed during measurement.

• GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of            tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.

• With SPC data output.

• With RS-232C input/output

• Accuracy: Refer to the list of specifications.

• Resolution: 0.0005mm/0.001mm or .00002”/.00005”/.0001”/0.0005mm/0.001mm

• Display: LCD

• Length standard: Linear encoder

• Max. Response speed: 1000mm/s

• Measuring force: 2.0N/2.5N* or less (*60mm range models)

• Power supply: 6V DC (via AC adaptor)

• Origin-set/Preset, Zeroset, GO/±NG judgment, Max/Min value hold, Runout measurement, Resolution switching, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion (on inch/metric models only)

• Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error

Order No	Model	Accuracy	Range	Resolution
543-562A	ID-H530E	0.0015mm	0-1.2in 0-30.4mm	.00002,.00005,.0001in 0.0005,0.001mm
543-564A	ID-H560E	0.0025mm	0-2.4in 0-60.9mm	.00002,.00005,.0001in 0.0005,0.001mm
