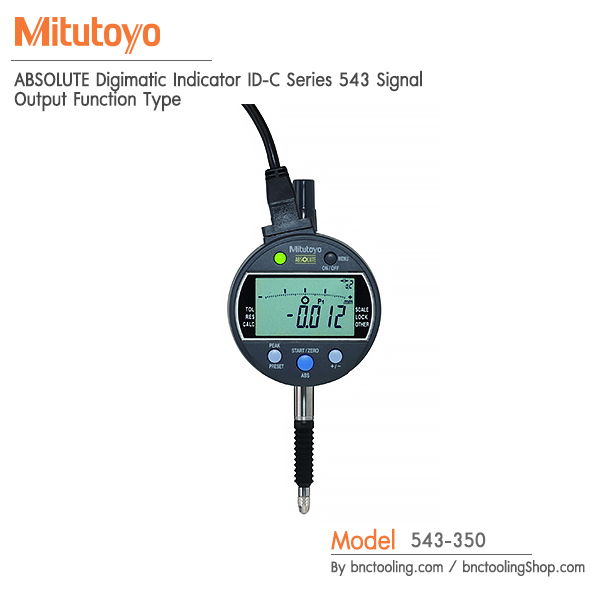

FEATURES
• With the max./min. value holding function, the signal ID-C can output the signal of the GO/±NG judgment result against the peak values set. Substitute for the mechanical/electrical contact, the judgment is carried out by calculating the measurement data obtained. This provides high reliability with no deterioration of the contact point and volume adjustment.
• The signal can be output to an external device like a sequencer through the NPN open-collector.
• The GO/±NG judgment result is also indicated by the green/red LED and the "<, O, >" signs on LCD.
• Employing the ABSOLUTE linear encoder, the Signal ID-C always displays the spindle "Absolute Position" from the origin at power-on.
• The Signal ID-C achieves the IP54 protection level to resist dust and contaminants for safe operation in harsh machine shop environments.
Technical Data
• Accuracy: Refer to the list of specifications.
• Resolution: 0.001mm, .00005”/0.001mm or .0001”/0.001mm
• Display: LCD
• Length standard: ABSOLUTE electrostatic capacitance type linear encoder
• Max. response speed: Unlimited
• Measuring force: 2.0N or less
• Power supply: DC 12 - 24V±10%
• Dust/Water protection level: IP54
• Function
• Data output (–NG/OK/NG signal, NPN open collector), Remote control (hold-preset, preset-recall, zero-set), Origin-
set/Preset, Zeroset, GO/±NG judgment, Max/Min/Runout value holding, Counting direction switching, Power
• ON/OFF, inch/mm conversion (on inch/metric models only)
• Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error
Order No
|
Model
|
Resolution
|
Range
|
Accuracy
|
Measuring Force
|
Type
|
543-341B
|
ID-C112RMXB
|
.00001-.05in 0.0002-1mm
|
.5in 12.7mm
|
.00012in
|
1.5N or less
|
ISO/JIS type Stem Ø8mm M2.5x0.45 Thread
|
543-342B
|
ID-C112REXB
|
.00001-.05in 0.0002-1mm
|
.5in 12.7mm
|
.00012in
|
1.5N or less
|
ANSI/AGD type Stem dia 3/8 in 4-48 UNF Thread
|
543-591B
|
ID-C125RMXB
|
.00001-.05in 0.0002-1mm
|
1in 25.4mm
|
.00012in
|
2.0N or less
|
ISO/JIS type Stem Ø8mm M2.5x0.45 Thread
|
543-592B
|
ID-C125REXB
|
.00001-.05in 0.0002-1mm
|
1in 25.4mm
|
.00012in
|
2.0N or less
|
ANSI/AGD type Stem dia 3/8 in 4-48 UNF Thread
|
543-596B
|
ID-C150RMXB
|
.00001-.05in 0.0002-1mm
|
2in 50.8mm
|
.00025in
|
2.3N or less
|
ISO/JIS type Stem Ø8mm M2.5x0.45 Thread
|
543-597B
|
ID-C150REXB
|
.00001-.05in 0.0002-1mm
|
2in 50.8mm
|
.00025in
|
2.3N or less
|
ANSI/AGD type Stem dia 3/8 in 4-48 UNF Thread
|
