(แนะนำสินค้า) เครื่องทดสอบความความแข็งแบบบริเนลล์ (Portable Brinell Hardness Tester) มาตารฐานASTM E-110, E-10, ISO, JIS and GB

(แนะนำสินค้า) เครื่องทดสอบความความแข็งแบบบริเนลล์ (Portable Brinell Hardness Tester) มาตารฐานASTM E-110, E-10, ISO, JIS and GB
Brand : PhaseII

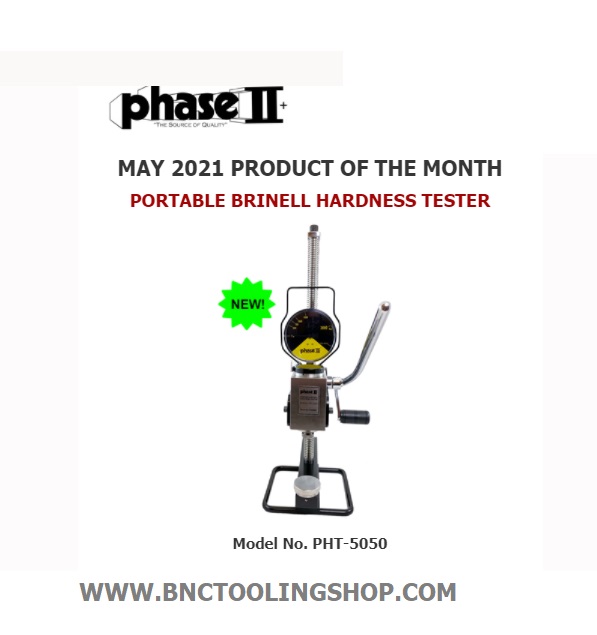

The PHT-5050 Portable Brinell Hardness Tester has been engineered and built for durability,
The PHT-5050 portable Brinell hardness tester meets all Brinell standards, including ASTM E-110, E-10 and relevant Brinell hardness tester standards from ISO, JIS and GB.
The PHT-5050 portable Brinell hardness tester is easy to operate and small enough to carry to outside locations for on-site testing.
This portable Brinell hardness tester utilizes a 3,000 kg load on a 10mm carbide ball,
which is available for reading or re-reading at any time.

The PHT-5050 portable Brinell hardness tester uses a hydraulic principle with hand-operation to apply the 3000kg test force.

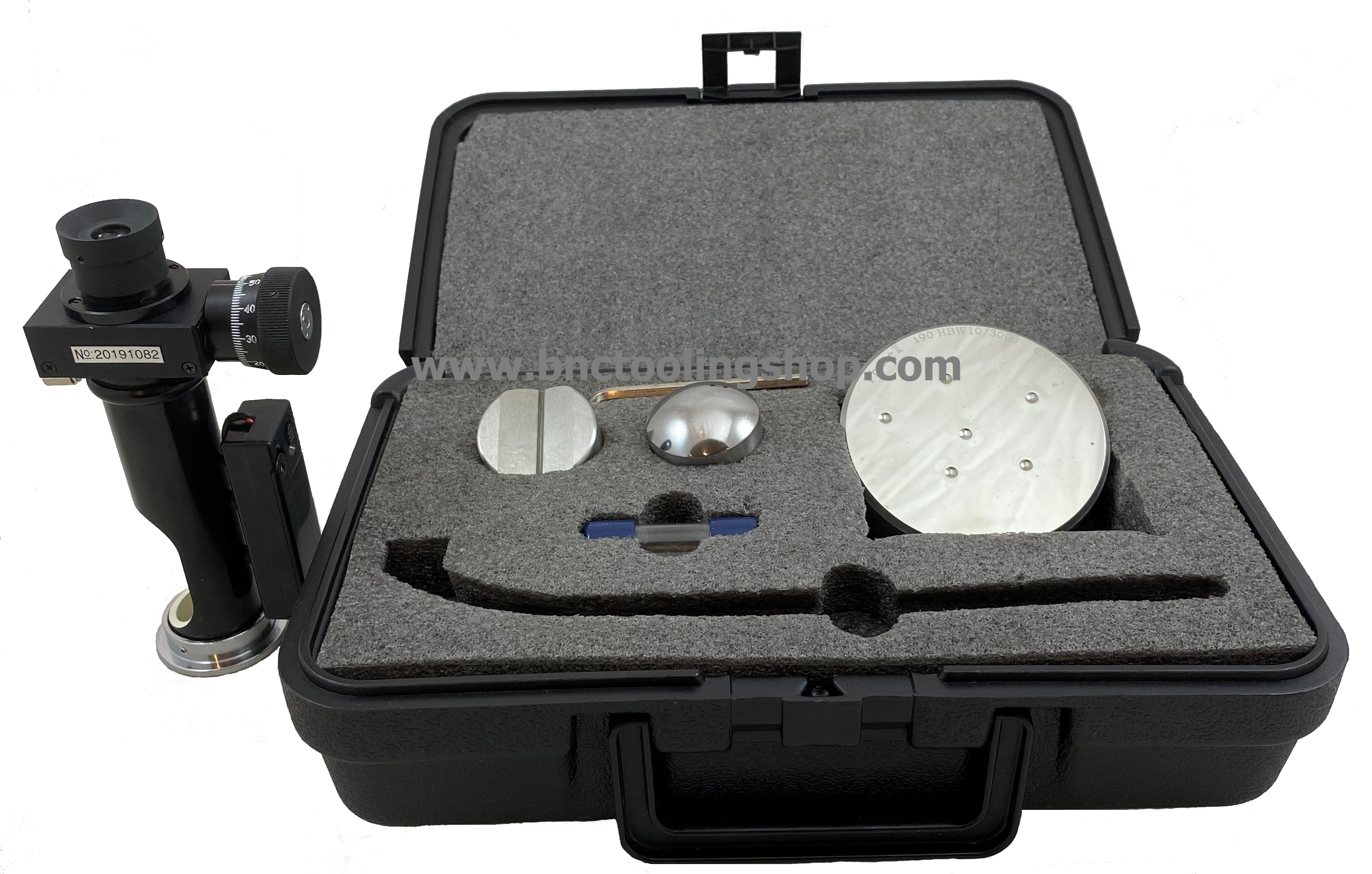

The PHT-5050 portable Brinell hardness tester comes with:

Calibrated test block
10mm carbide ball
Measuring microscope
3 anvils
USB stick(manuals/info)
Certificate
Carry case
Specifications:
Test Force: 3000kg (500kg, 750kg, 1000kg, and 1500kg are optional)
Accuracy of Test Force: 1%
Indenter: 10 mm carbide ball indenter (5mm ball optional)
Testing Range: 16-650 HBW
Max. Specimen Height: Approx. 13”
Throat Depth: Approx. 4”
Repeatability: ISO 6506/ASTM E110/ASTM E-10
