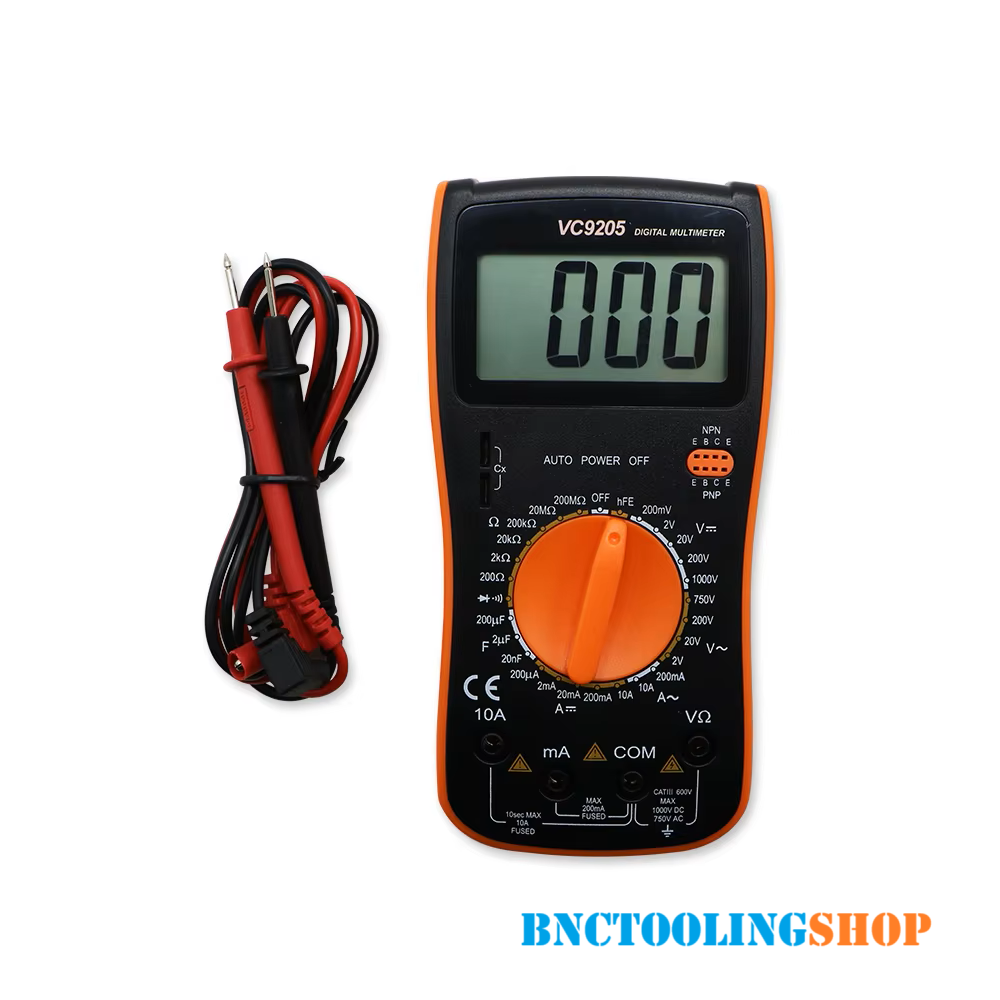

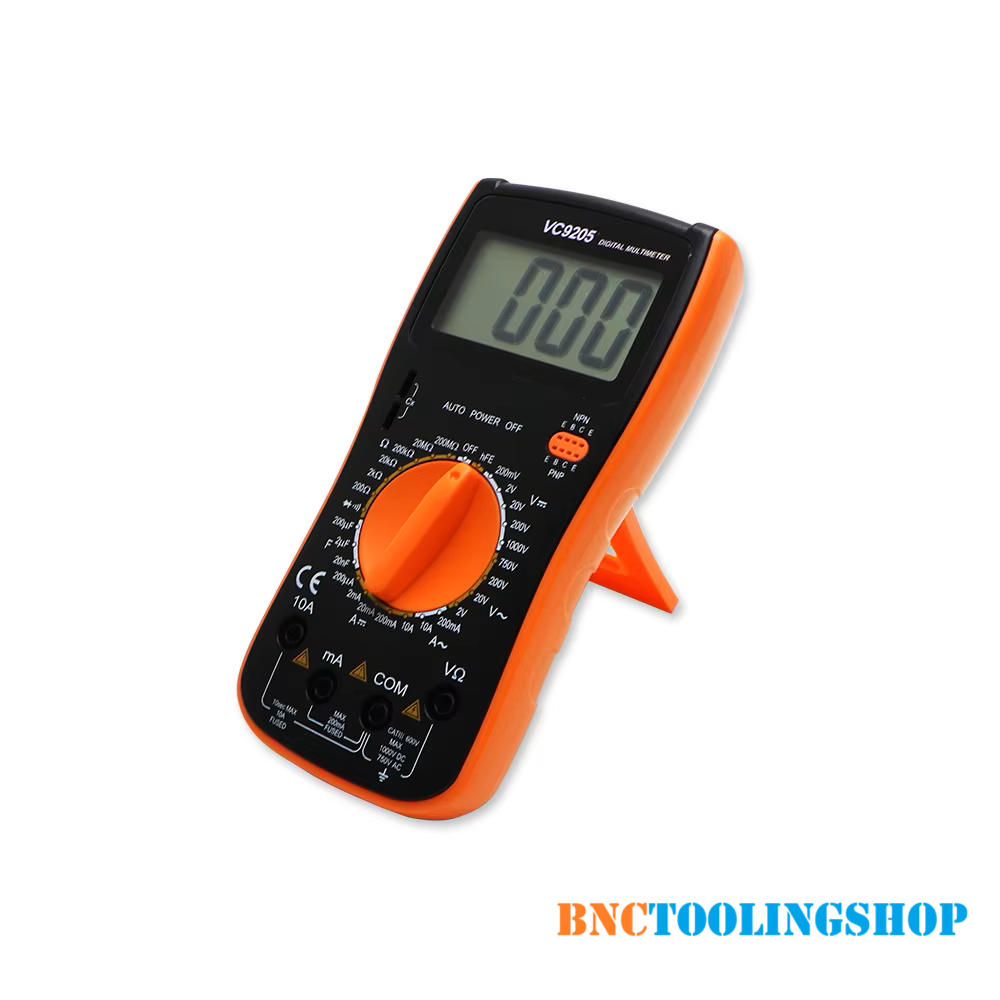

SHAHE,VC9205 Digital Multimeter, LCD Multimeter AC DC Voltmeter Resistance Capacitance, Diode, Triode, Continuity Tester VC9205,

SHAHE,VC9205 Digital Multimeter, LCD Multimeter AC DC Voltmeter Resistance Capacitance, Diode, Triode, Continuity Tester VC9205,

Brand : SHAHE,
Model: VC9205,
Name : VC9205 Digital Multimeter,

Product details

This instrument is a stable and high performance digital multimeter driven by battery. This meter is using LCD display with the text height of 25mm which features clear reading and convenient operation. It can be used to measure the parameters such as DCV, ACV, DCA and ACA, Resistance, Capacitance, Diode, Triode, Continuity test etc. The instrument takes dual-integral A/D converter as key point, is an excellent tools. It's an ideal tool for lab, factory and family.

Technical Parameters
DC voltage:200mV / 2V / 20V / 200V / 1000V ± (0.5% + 4)
AC voltage:2V / 20V / 200V / 750V ± (0.8% + 8)
DC Current:200uA / 2mA / 20mA / 200mA / 10A ± (1.5% + 10)
AC Current:200mA / 10A ± (2.0% + 15)
Resistance200 / 2k / 20k / 200k / 20M / 200M ± (0.8% + 3)
Capacitance:20nF / 2uF / 200uF ± (2.5% + 20)

External Structure

1. LCD: Display the measuring value
2. hFE jack: To measure the magnifying times for triode
3. Capacitance input jack
4. Switch: To change the measuring function and range.
5. Socket of voltage, resistance and frequency
6. Jack for current 10A test
7. Jack for measuring current less than 200mA
8. COM terminal

General Feature

1. Display method: LCD display
2. Max. display: 1999 (3 1/2) with auto polarity indication
3. Measuring method: double-integrating A/D conversion
4. Sample rate: about 3 times/s
5. Over range display: MSD displays "1" or "-1"
6. Low battery display: symbol display
7. Working environment: Temperature (0~40) ℃, relative humidity＜75%
8. Power: one 9V battery (NEDA1604/6F22 or same mode)
9. Dimension: 175*80*38mm (Length*width*height)
10. Weight: about 220g (include battery)
