ไฮไลท์
เครื่องวัดค่าความหนา,Landtek,Ultrasonic Thickness Meter TM-8811,
Brand : Landtek,
Model: TM-881,
Name : เครื่องวัดค่าความหนา Ultrasonic Thickness Gauge,
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า
เครื่องวัดค่าความหนา,Landtek,Ultrasonic Thickness Meter TM-8811,

Brand : Landtek,
Model:  TM-881,
Name : เครื่องวัดค่าความหนา Ultrasonic Thickness Gauge,


Spec:Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
Model:TM-8811

Features

* Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Automatic power off to conserve power.

Code Material
CD01 Steel
CD02 Cast Iron
CD03 Aluminum
CD04 Red Copper
CD05 Brass
CD06 Zinc
CD07 Quartz Glass
CD08 Polyethylene
CD09 PVC
CD10 Gray Cast Iron
CD11 Nodular Cast Iron
XXXX Sound Velocity

Display
LCD

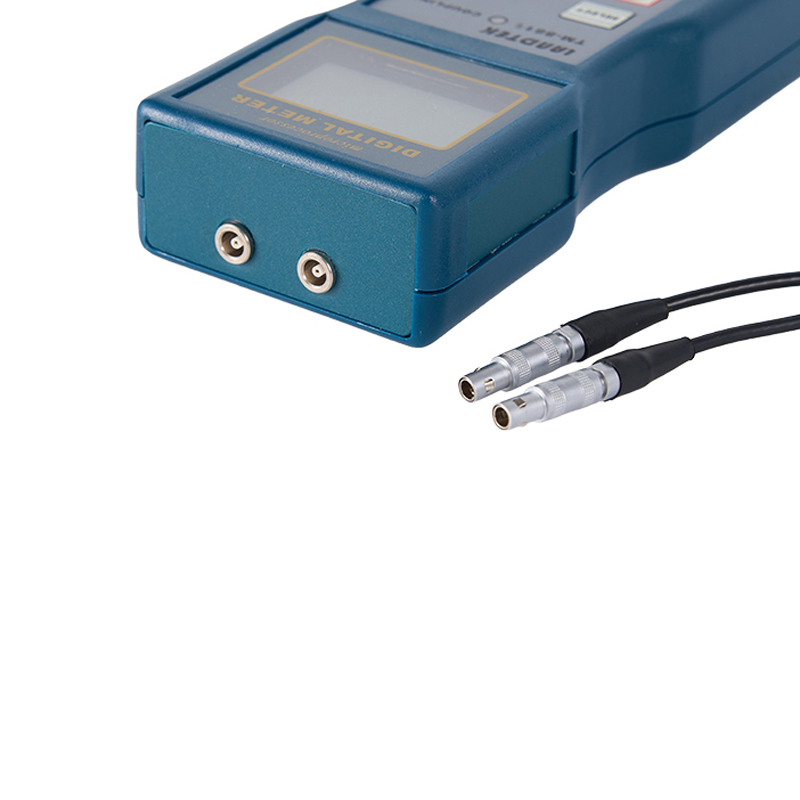

Sensor
Ultrasonic Probe
Measuring Range
1.5~200mm/0.06~8 inch
Resolution

MPE:+(0.1+H/100)mm

Accuracy
±(0.5%n+0.2)
Sound Velocity
1000~9,000 m/s
Lower Limit of Pipes
Φ15x2.0mmΦ20x3.0
Determined By Transducer
Operating
Conditions
Temperature
0~40ºC
Humidity
<85%RH

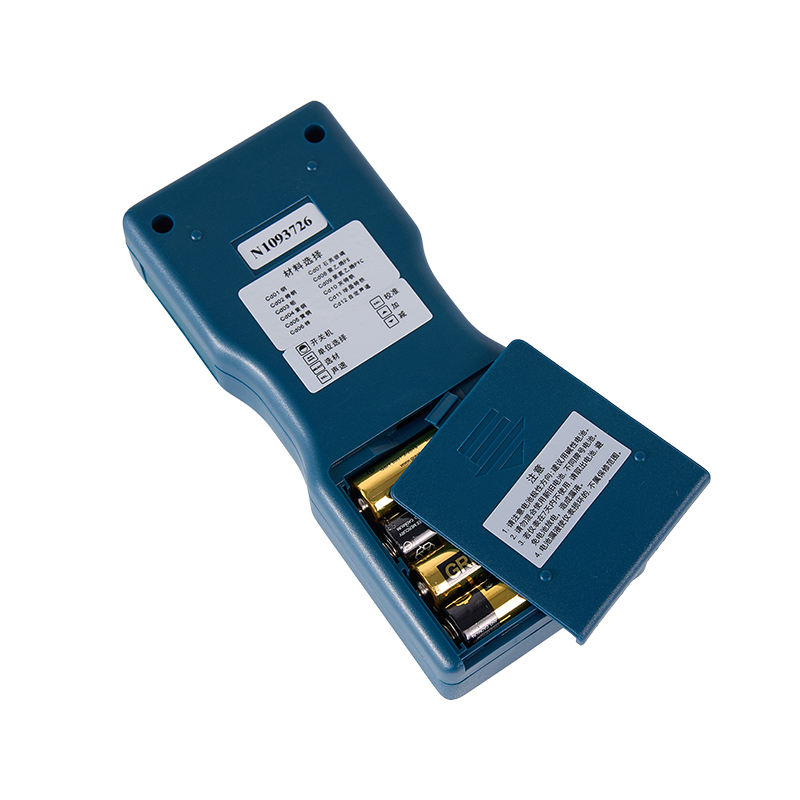

Power Supply
4x1.5V AA(UM-3)Battery
Dimensions
160x68x32mm
Weight
208g(Not Including Batteries)
